YX12-110-880

Pre-painted Corrugated Steel Sheet

Manufactured using premium galvanized, galvalume, or zinc-aluminum-magnesium (ZAM materials) substrates and coated with polyester or PVDF finishes, these sheets are an ideal roofing and wall cladding solution for modern architecture construction.

Specification

Profile/Type	YX12-110-880
Effective Width(after corrugation)（mm）	880
Material input width（mm）	1000

Product Advantages

Curved & Tapered Capability

Products could be curved, tapered, and shaped for complex roof forms.

Lightweight and High Strength

Much lighter than traditional roofing materials but structurally strong, which could capable of withstanding wind and heavy loads in real usage.

Aesthetic Appeal

Available in a wide range of vibrant colors (RAL color could be customized) with a smooth, glossy surface, offering strong decorative value for modern architecture.

Strong Environmental Adaptability

Performs reliably in extreme climates including high temperatures, cold winters, coastal humidity, and high UV environments depends on different available materials..

Impact & Hail Resistance

Multi-layer construction design resists dents and hail or debris impact.

Colorfast & Fade-Resistant

UV-stable pigments help to maintain color and gloss,and to reduce risk of chalking and fading.

Quality Standard

Quality Standard	EN10142/10346/10169J153302,ASTMA755M
Thickness	0.1mm-0.8mm
Effective Width(after corrugation)	665mm,750mm,815mm,840mm,900mm,925mm,1020mm,1025mm,1050mm
Base metal	Galvanized,galvalume,or zinc-aluminum-magnesium (ZAM materials) etc
Type of paint	PE,PVDF,HDP,SMP etc
Length	Generally 1830mm,2440mm, 3000mm and 3600mmAny length could be customized according to orderand transportation limits which generally less than 12m
Delivery time	Within 15-20 working days after receiving deposit
Package	Export standard packing.Including waterproof paperand steelsheet bundle (with steel strips3-4 pcs)

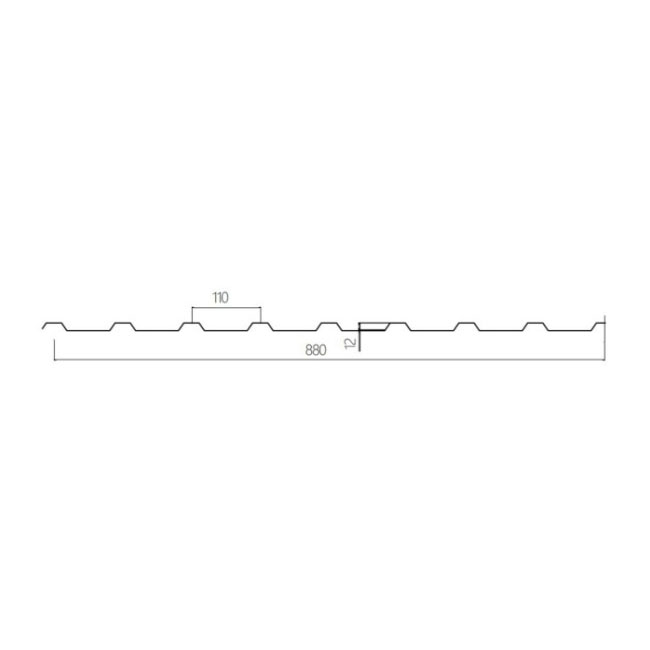

The YX12-110-880 Pre-painted Corrugated Steel Sheet represents a premium architectural cladding solution engineered for modern construction requirements. This high-performance building material features a carefully engineered corrugated profile with 12mm rib height and 110mm pitch spacing, delivering an optimal balance between structural strength and material efficiency. The product's 880mm effective coverage width ensures maximum installation efficiency while maintaining excellent weather resistance capabilities.

Manufactured using premium substrate materials including galvanized steel (GI), Galvalume (Aluzinc), or advanced Zinc-Aluminum-Magnesium (ZAM) alloys, the sheet provides exceptional corrosion resistance and long-term durability. These high-quality metallic substrates are further enhanced with sophisticated coating systems using durable Polyester (PE) or Polyvinylidene Fluoride (PVDF) finishes, creating a multi-layer protection system that offers superior resistance against UV radiation, chemical exposure, and harsh weather conditions.

The product demonstrates remarkable versatility across numerous applications, serving as an ideal solution for industrial roofing, commercial wall cladding, and various architectural projects. Its balanced profile design ensures adequate load-bearing capacity while maintaining a visually appealing appearance suitable for different architectural styles. The combination of technical excellence and practical benefits makes this steel sheet particularly valuable for projects requiring reliable performance and long-term value.

Company Profile

At Ecosteel Source, we combine manufacturing expertise and global trade experience to deliver sustainable, high-performance steel materials and advanced building solutions that shape the future of modern construction.

With a full range of products covering Zinc-Aluminum-Magnesium (ZAM) coated steel, galvalume (GL) steel, galvanized (GI) steel, pre-painted steel (PPGI/PPGL), as well as floor deck systems, C/Z/U structural purlins, metal studs&tracks (roof&wall), corrugated color steel sheets (roof&wall), sandwich panels and cleanroom panels, we deliver comprehensive solutions for modern roofing and wall cladding systems.

Combining advanced processing capability, strict quality control, and customized service, Ecosteel Source aims to help our partners to build durable, energy-efficient, and sustainable architectural projects worldwide.

Pack & Ship

Shipping & Paymentterm

How to start your Project and Business?

Inquiry

Provide product specifications(materia size, coating, color, quantity, application).
Quotation

Get formal quotation with price, leao time, payment,and other details.
Sample

Confirm samples or drawings for customized colors patterns.
Contract & Payments

Sian Pl/contract and pay deposit to schedule production; Special customizec products require full payment in advance.

Production

Manufacturing with strict quality control,third-party inspection available.
Packing & Balance

Packed to international standards,and settle balance payment.
Shipment & Documents

Shipment arranged with documents,receive full set of shipping documents.
After-sales

Technical support,long-term supply and project services.
