Galvalume Steel Coil

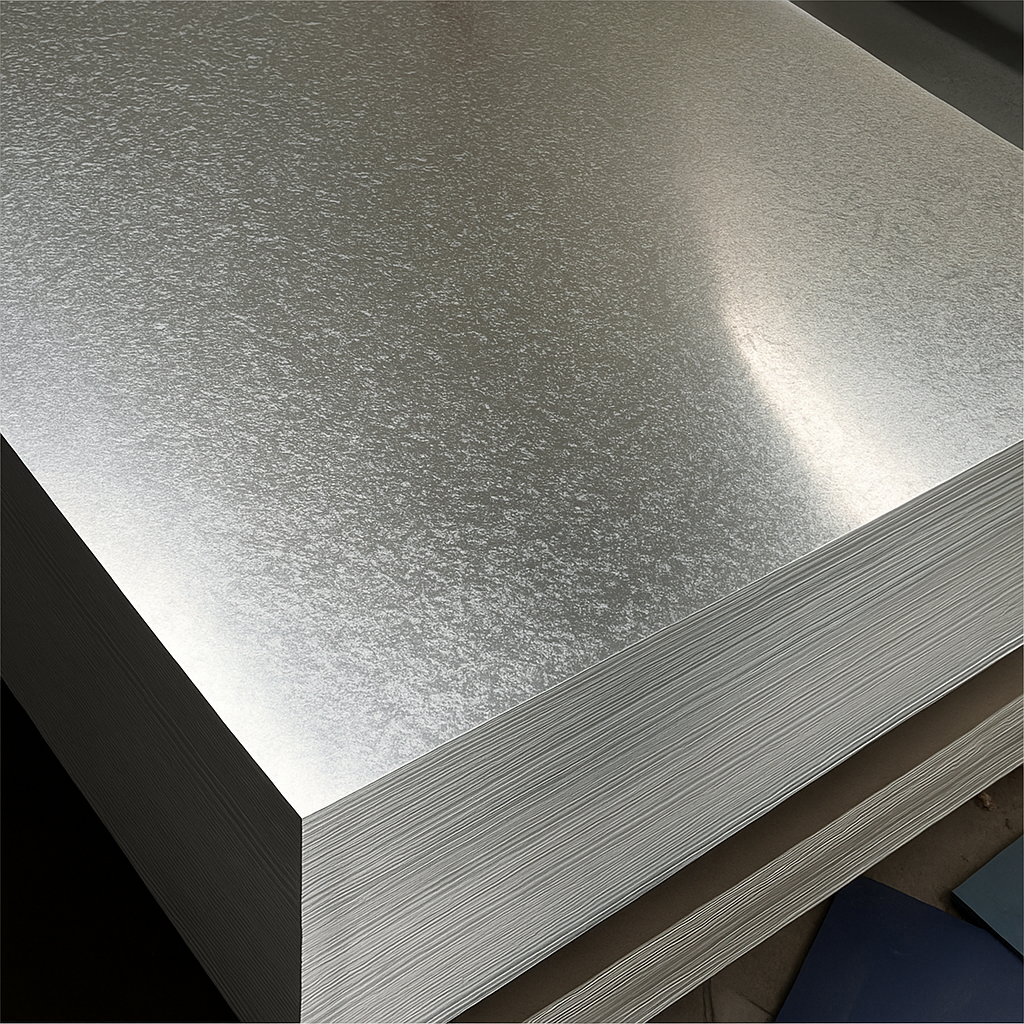

Galvalume steel (usually called GL steel material) is a type of steel product coated with an aluminum-zinc alloy, typically composed of approximately 55% aluminum, 43.5% zinc, and 1.6% silicon. This alloy coating combines the superior corrosion resistance of aluminum with the sacrificial protection of zinc, which helps in providing long-lasting performance under a wide range of climate conditions. Galvalume steel materials feature a distinctive metallic luster and snowflake-like spangle. Which made thid material offering both aesthetic appeal and excellent resistance to high temperatures, corrosion, and heat reflection. It is now widely used in construction, home appliances, transportation, and industrial manufacturing.

Technical Specifications

Thickness	0.12mm-6.0mm, depends on orders
Width	600mm-1500mm, depends on orders
Grades	AZ50, AZ70, AZ100, AZ120, AZ150, AZ180, AZ200,etc.(depends on orders)

Product Description

We offer a range of processing services tailored to customer requirements. These include slitting large coils into smaller coils, cutting into narrow strips or flattening into sheets, and providing further fabrication into finished products such as C/Z/U purlins, light steel furring channel keels, and other customized items in our product catalogue.

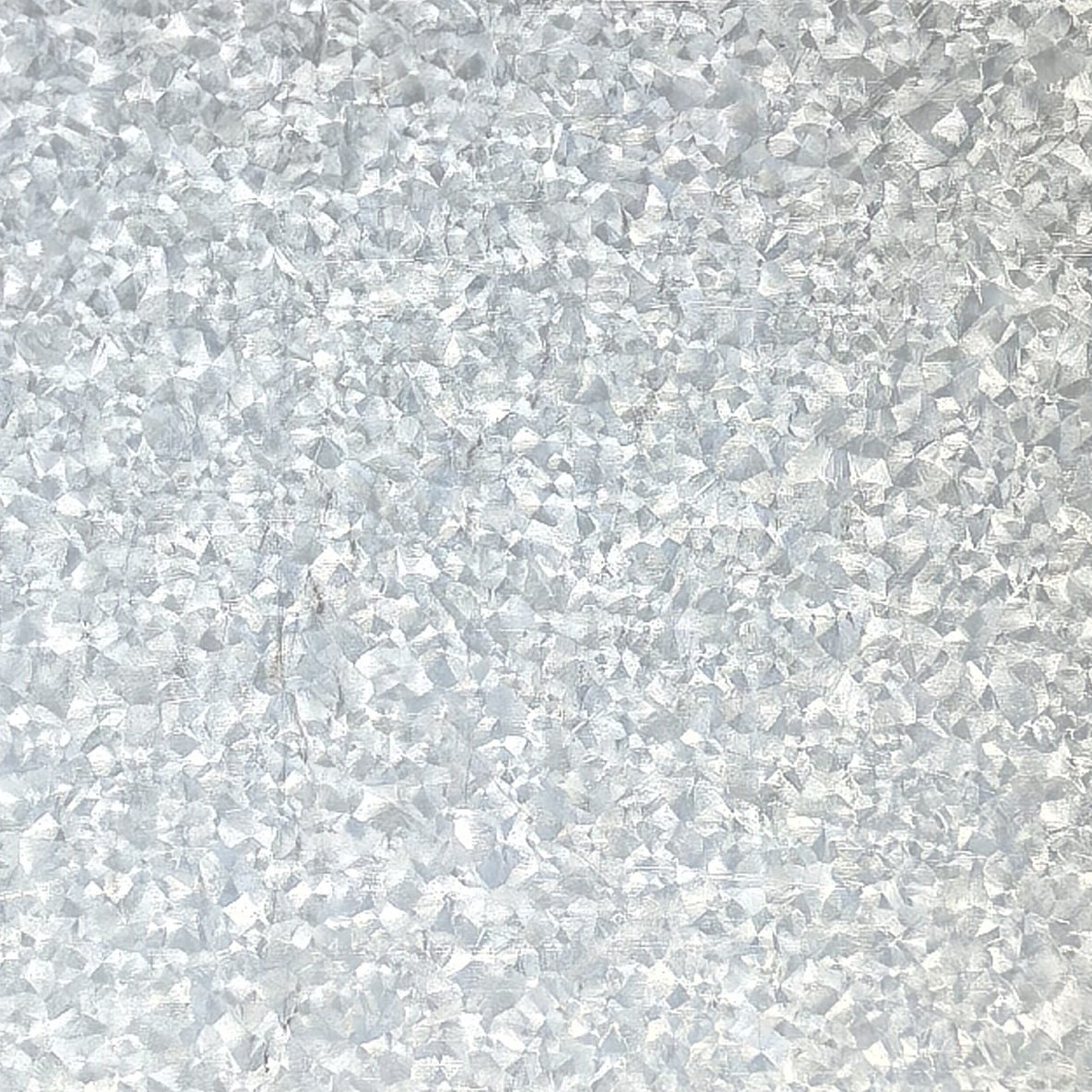

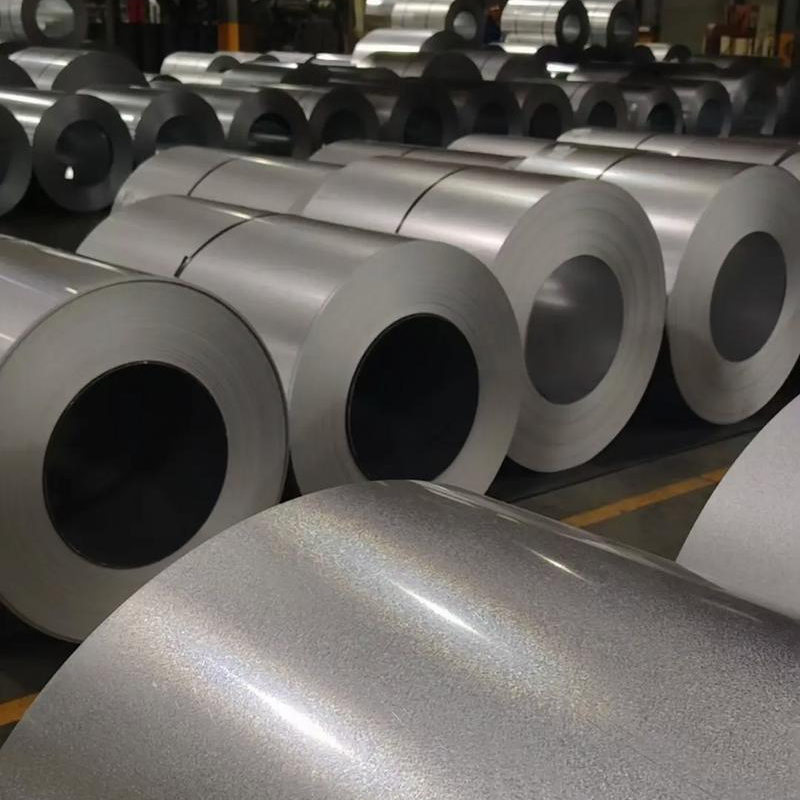

Our company produces Galvalume steel coils using high-quality cold-rolled substrate through continuous hot-dip Galvalume process. The product features a unique aluminum-zinc alloy coating (55% aluminum, 43.5% zinc, 1.5% silicon), which providing superior corrosion resistance, heat resistance, and weather resistance compared to conventional galvanized products. The surface displays a distinctive bright silver fish-scale pattern, offering an aesthetically pleasing appearance.

We provide comprehensive customization services like customers could customize coating weights such as AZ50、AZ70、AZ100、AZ120、AZ150、AZ180、AZ200, which ranging from 40-900g/m². Particularly noteworthy is our protective film lamination service, which could effectively prevents surface scratches during transportation and processing, maintaining the product in optimal condition.

Additionally, we are equipped with advanced slitting equipment that can provide wide coil slitting and "coil-to-sheet" services , which could precisely cutting master coils into narrow strips of various custom widths or into sheets of various lengths.

Applications

Construction: Roofing, wall cladding, ventilation ducts, and building envelope systems.

Home Appliances: Water heater shells, oven liners, air conditioner housings, etc.

Transportation: Automotive exhaust systems, heat shields, container linings, etc.

Industrial Equipment: Heat reflectors, chimney covers, dryer housings, etc.

Quality Assurance: Ecosteel Source uses high-quality base steel and precise galvalume coating producing technology to ensure uniform composition, strong adhesion, and stable thickness. We offer various coating weights (commonly AZ50–AZ120, like AZ150, 200, 300 could also be accepted depends on different orders) to meet different requirements. All products comply with ISO, ASTM, and EN international standards, which delivering exceptional protection and decorative performance in diverse use environments.

Key Features

Excellent Corrosion Resistance

The dense aluminum oxide layer blocks corrosive elements, and while zinc provides additional sacrificial protection.

Outstanding High-Temperature Resistance

Maintains surface stability even at temperatures up to 315°C.

High Reflectivity

Offers excellent reflection of heat and light, reducing energy consumption.

Attractive Surface Appearance

Strong metallic finish suitable for direct use or as a substrate for pre-painted steel.

Good Workability

Compatible with cutting, stamping, bending, welding, and various fabrication processes.

Company Profile

At Ecosteel Source, we combine manufacturing expertise and global trade experience to deliver sustainable, high-performance steel materials and advanced building solutions that shape the future of modern construction.

With a full range of products covering Zinc-Aluminum-Magnesium (ZAM) coated steel, galvalume (GL) steel, galvanized (GI) steel, pre-painted steel (PPGI/PPGL), as well as floor deck systems, C/Z/U structural purlins, metal studs&tracks (roof&wall), corrugated color steel sheets (roof&wall), sandwich panels and cleanroom panels, we deliver comprehensive solutions for modern roofing and wall cladding systems.

Combining advanced processing capability, strict quality control, and customized service, Ecosteel Source aims to help our partners to build durable, energy-efficient, and sustainable architectural projects worldwide.
