Galvanized Steel Coil
Technical Specifications
|
Thickness |
0.11mm-6.0mm, depends on orders |
|
Width |
22mm-1500mm, depends on orders |
|
Grades |
DX51D+Z, SGCC, SGD350,etc.(depends on orders) |
|
Surfaces |
Spangle Galvanized and Non-Spangle Galvanized |
Product Description
Thickness:0.11mm-6.0mm, depends on orders
Width:22mm-1500mm, depends on orders
Grades: DX51D+Z, SGCC, SGD350,etc.(depends on orders)
Surfaces: Spangle Galvanized and Non-Spangle Galvanized

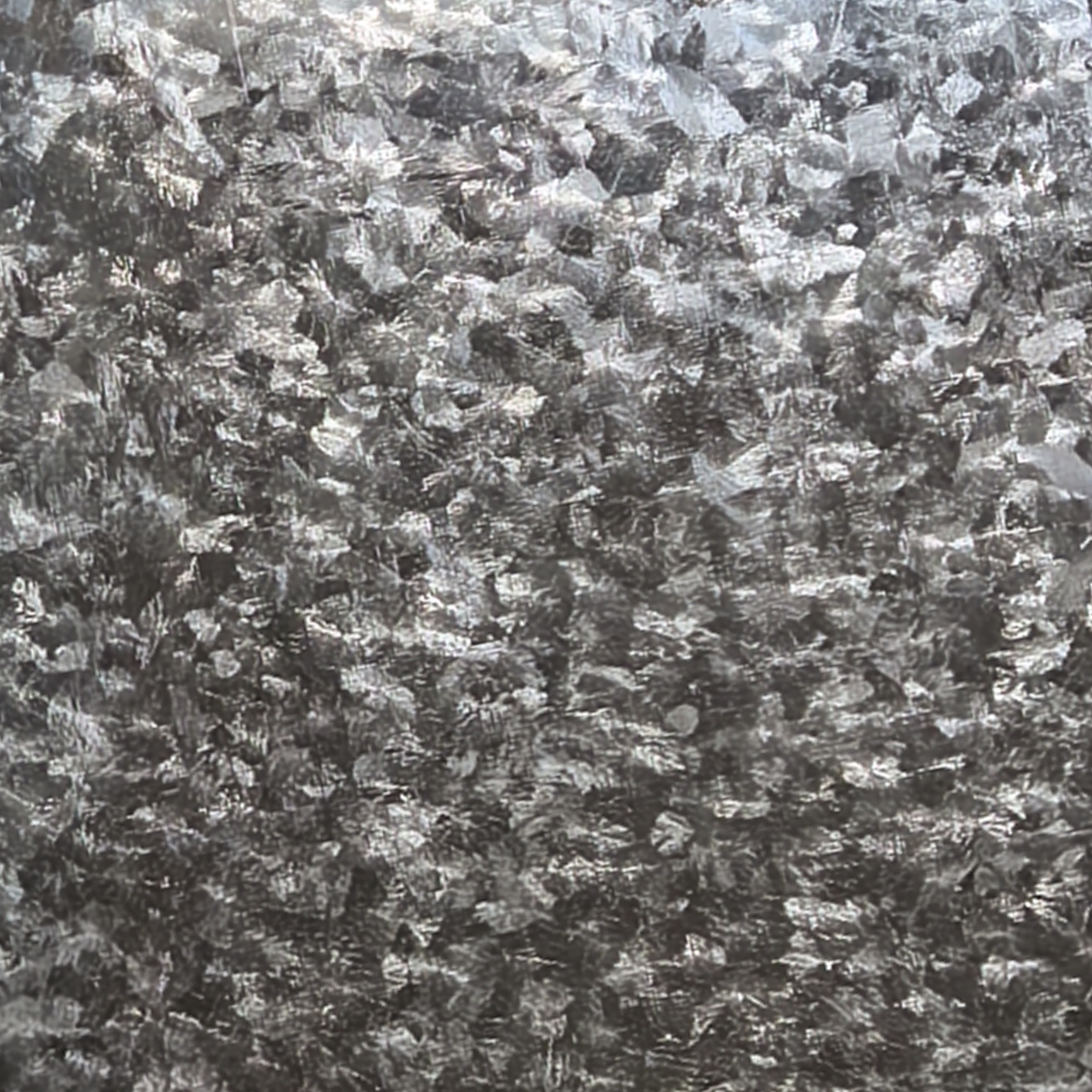

Spangle Galvanized: During the cooling process of hot-dip galvanizing, the zinc layer crystallizes to form regular or irregular spangle patterns, which giving a decorative metallic appearance. This product is commonly used in applications where aesthetics are important, such as exposed roofing and decorative cladding panels.

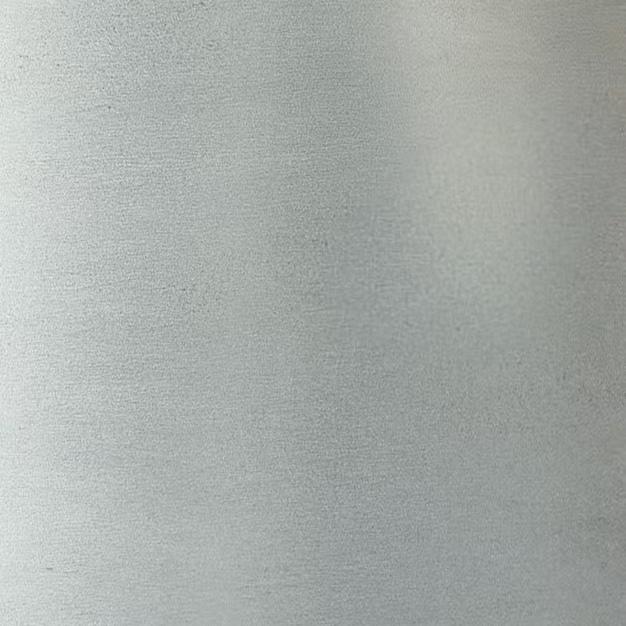

Non-Spangle Galvanized: Produced by controlling the galvanizing process to suppress spangle formation, and resulting in a smooth and uniform surface. This product is ideal for post-painting or color-coating applications, and now is often used for appliance panels, indoor sheets, and other applications requiring high surface flatness.
We offer a range of processing services tailored to customer requirements. These include slitting large coils into smaller coils, cutting into narrow strips or flattening into sheets, and providing further fabrication into finished products such as C/Z/U purlins, light steel furring channel keels, and other customized items in our product catalogue.
Our company produces galvanized steel coils using high-grade cold-rolled steel coils as base material, which are processed through good continuous hot-dip galvanizing technology. The products feature a uniform coating, strong adhesion, and excellent corrosion resistance, with a smooth surface and stable mechanical properties, making them essential fundamental materials for manufacturing industries including construction, home appliances, automobiles, and containers.
Understanding the specific requirements of different application scenarios, we could provide in-depth personalized customization services: customers can freely choose between a spangled (regular spangle) or non-spangled (zero spangle) surface finish based on the aesthetic and anti-corrosion needs of the final product.
At the same time, we support flexible customization of zinc coating weights (ranging from 40 g/m² to 900 g/m²) to ensure durability in specific environments.

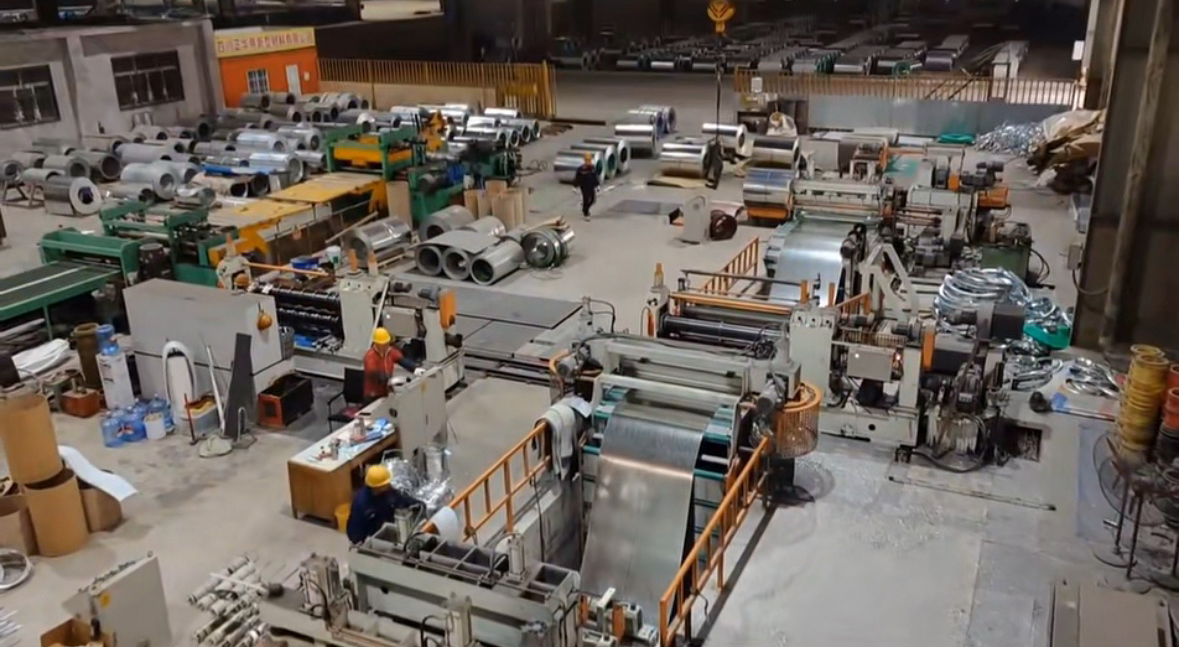

Additionally, we are equipped with advanced slitting processing lines that offer efficient wide-coil slitting services, which could precisely cutting master coils into narrow strips of any custom width you require. We hope that we could help our customers to optimize material utilization and significantly reduces procurement and production costs.
Applications
Construction: Roofing, wall cladding, gutters, ventilation ducts, and protective layers for steel structures.
Home Appliances: Refrigerator back panels, washing machine shells, microwave oven interiors, etc.
Transportation: Automobile chassis, shipping containers, and vessel linings.
Industrial Equipment: Electrical cabinets, machinery housings, warehouse racking, etc.
Quality Assurance: Ecosteel Source uses premium base steel and strict production control to ensure the strong adhesion and consistent coating thickness of products. We offer galvanized steel coils in various specifications, including regular zinc coating (40–275 g/m²) and customized high-zinc products (like 600-900g/m², depends on demand). All products comply with ISO, ASTM, and EN international standards, which guaranteeing reliable performance across diverse climate conditions in real usage.
Superior Corrosion Resistance
The zinc layer offers sacrificial protection, which could help in slowing down substrate corrosion even when the surface is damaged.
Excellent Formability
Easy to cut, stamp, bend, and weld,which is also adaptable to various manufacturing processes for users. Attractive Appearance: Uniform spangle and bright surface, which is suitable for direct use or as a substrate for color-coated steel.
Cost-Effective
Ensures durability while keeping production costs relatively low, and offering strong economic benefits.
Eco-Friendly & Recyclable
Meets green building material standards and products can be fully recycled after used.
Attractive Appearance
Uniform spangle and bright surface, which is suitable for direct use or as a substrate for color-coated steel.
Company Profile
-
At Ecosteel Source, we combine manufacturing expertise and global trade experience to deliver sustainable, high-performance steel materials and advanced building solutions that shape the future of modern construction.With a full range of products covering Zinc-Aluminum-Magnesium (ZAM) coated steel, galvalume (GL) steel, galvanized (GI) steel, pre-painted steel (PPGI/PPGL), as well as floor deck systems, C/Z/U structural purlins, metal studs&tracks (roof&wall), corrugated color steel sheets (roof&wall), sandwich panels and cleanroom panels, we deliver comprehensive solutions for modern roofing and wall cladding systems.Combining advanced processing capability, strict quality control, and customized service, Ecosteel Source aims to help our partners to build durable, energy-efficient, and sustainable architectural projects worldwide.
-
Pack & Ship
-
InquiryProvide product specifications(materia size, coating, color, quantity, application). -
QuotationGet formal quotation with price, leao time, payment,and other details. -
SampleConfirm samples or drawings for customized colors patterns. -
Contract & PaymentsSian Pl/contract and pay deposit to schedule production; Special customizec products require full payment in advance.
-
ProductionManufacturing with strict quality control,third-party inspection available. -
Packing & BalancePacked to international standards,and settle balance payment. -
Shipment & DocumentsShipment arranged with documents,receive full set of shipping documents. -
After-salesTechnical support,long-term supply and project services.
