YX76-344-688

Open-Type Steel Deck

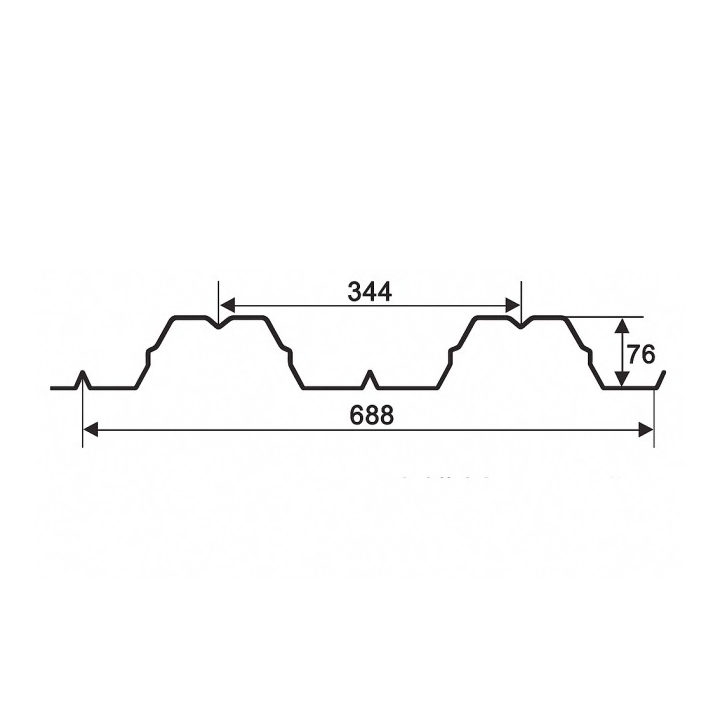

The YX76-344-688 is a common type of profile used for floor decking in construction.

Key features:

Rib height of 76 mm.
Two waves.
Pitch of each wave is 344 mm.
Effective width of formed sheet is 688 mm.
Coil feed width (uncoiled width) is 1000 mm.

Specification

Effective width（mm）	Expand the width（mm）	Sheet thickness（mm）	Moment of inertia of section（cm4/m）	Section resistance moment（cm3/m）
688	1000	0.8	119.5	28.54
		1.0	148.2	35.68
		1.2	180.1	42.83

Product Description

The YX76-344-688 Open-Type Floor Deck is an advanced structural decking solution, which engineered for long spans and high-load applications. Its deep 76mm profile and 344mm trapezoidal pitch deliver superior structural strength effect and exceptional spanning capability in real usage. That allowing for reduced secondary steelwork and then optimized project economics. The 688mm wide panel maximizes installation efficiency, and minimizing labor and material waste.

This profile excels in composite floor systems by providing outstanding vertical load resistance and showing horizontal shear bond performance. That makes it an ideal choice in environments like high-rise constructions, large-span public venues, and heavy-duty industrial warehouses and making good effect on integrating rapid construction with structural reliability and cost-effectiveness.

Product Advantages

Proven Across Industries

Proven Project Experience- Our solutions have been successfully deployed across numerous industrial, commercial, and civil projects over many years.

Continuously Creating Value

Cost Efficiency & Long-Term Value- We actively reduce operational costs while simultaneously enhancing the long-term value and efficiency for our customers.

Compliant with Global Standards

Compliance with Global Standards- Based on different orders, products strictly adhere to international export standards including RoHS, ISO, CE certification and so on.

Full Process Support

End-to-End Service Chain- Our comprehensive service chain seamlessly covers design consultation, product selection, timely delivery, and dedicated after-sales support.

Full Process Support

End-to-End Service Chain- Our comprehensive service chain seamlessly covers design consultation, product selection, timely delivery, and dedicated after-sales support.

Backed by Real Projects

Extensive Project Portfolio- Our extensive portfolio includes participation in over a hundred significant engineering construction projects.

Company Profile

At Ecosteel Source, we combine manufacturing expertise and global trade experience to deliver sustainable, high-performance steel materials and advanced building solutions that shape the future of modern construction.

With a full range of products covering Zinc-Aluminum-Magnesium (ZAM) coated steel, galvalume (GL) steel, galvanized (GI) steel, pre-painted steel (PPGI/PPGL), as well as floor deck systems, C/Z/U structural purlins, metal studs&tracks (roof&wall), corrugated color steel sheets (roof&wall), sandwich panels and cleanroom panels, we deliver comprehensive solutions for modern roofing and wall cladding systems.

Combining advanced processing capability, strict quality control, and customized service, Ecosteel Source aims to help our partners to build durable, energy-efficient, and sustainable architectural projects worldwide.
