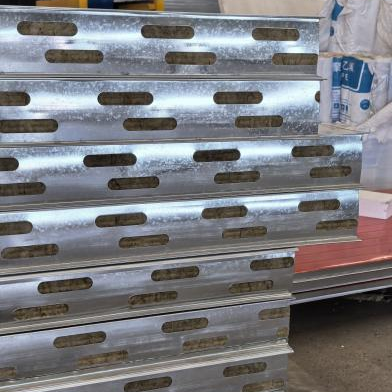

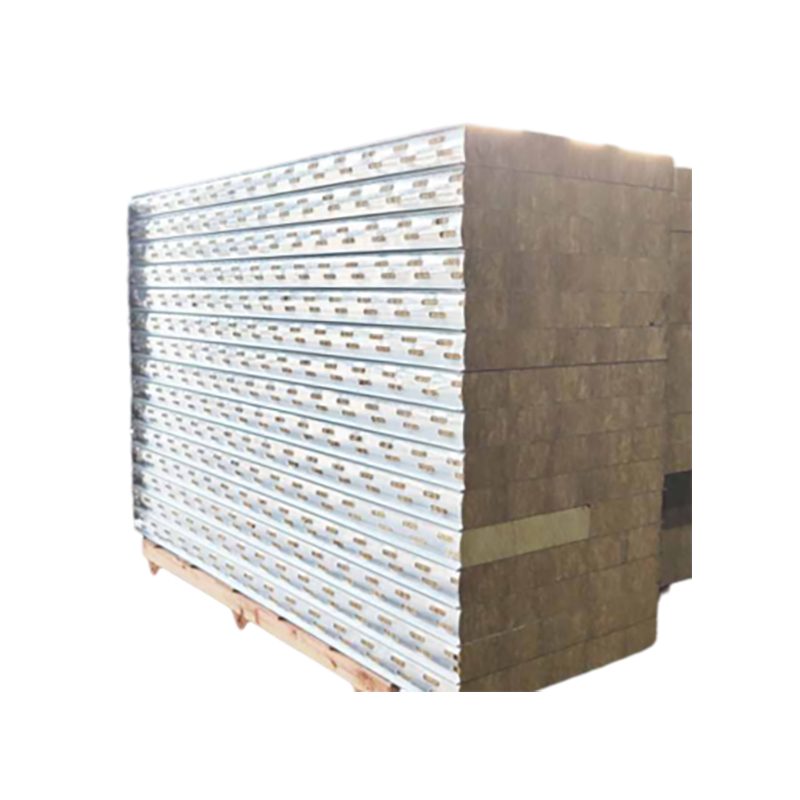

Thermal Process Tunnel Panel

Thermal process tunnel panels are high-performance insulated enclosure systems engineered for industrial drying/curing equipment, specifically designed for continuous high-temperature operating environments (80°C to 450°C). These baking tunnel insulation panels represent a new generation of fire-resistant boards with exceptional fire resistance. Suitable for thermal and acoustic insulation in drying chambers, paint booths, industrial equipment, buildings, and ships, they also serve as ideal materials for ceilings and partitions in electronics cleanrooms, purification rooms, and fire-resistant workshops. All products comply with national testing center certifications for fire resistance limits. Available in thicknesses from 50mm to 150mm, custom specifications can be manufactured according to client requirements.

Specification

Effective Width	950mm / 1150mm
Thickness	50mm - 150mm
Length	Customizable
Surface Configuration	Outer panel
Surface Protection	PVC protective film lamination
Color	Standard options available, custom colors upon request

Key Technical Properties

1.Extreme Temperature Resistance

Continuous service temperature:

Mineral wool core: ≤600°C

Ceramic fiber core: ≤1100°C

Linear thermal expansion coefficient: ≤5×10⁻⁶/°C (tested at 20-400°C)

2.Ultra-Low Thermal Conductivity

Thermal conductivity: 0.035 W/(m·K) @200°C (GB/T 10294)Thermal bridge elimination: Stainless steel thermal break bolts (U-value ≤0.5 W/(m·K))

3.Industrial-Grade Durability

Chemical resistance: Withstands pH 3-11 environments and organic solvents

Mechanical strength: Flexural strength ≥120 kPa (EN 12430)

4.Safety Protection

Fire rating: Class A1 (GB 8624)

Anti-static design: Surface resistance ≤10⁶ Ω (GB 12158)

Applications

1. Coating Industry:Automotive electrophoretic baking tunnels, spray coating curing tunnels

2. Food Processing:Biscuit baking lines, puffed food drying tunnels

3. New Materials:Lithium battery electrode drying, PV backsheet curing ovens

4. Industrial Kilns:Ceramic sintering preheating zones, glass annealing lehrs

Rock Wool Sandwich Panel

Core Differences

Parameter	Thermal Process Tunnel Panels	Conventional Sandwich Panels
Operating Temperature	80-1100°C (Ceramic fiber core option)	-40 to 80°C (Limited by polymer cores)
Core Density	≥180 kg/m³ (High-density mineral wool/ceramic fiber)	40-150 kg/m³ (PU/PIR/EPS cores)
Thermal Shrinkage (400°C×24h)	≤0.3% (Inorganic fiber stability)	Not applicable (Core melt/deformation occurs)
Connection System	High-temp double tongue-and-groove + airtight locks (Stainless steel alloy joints)	Standard tongue-and-groove (Galvanized steel profiles)
Thermal Bridging Control	Stainless steel thermal break bolts (U-value ≤0.5 W/(m·K))	Uninsulated fasteners (U-value ≥15 W/(m·K))
Surface Protection	High-temp silicone/PVC co-extruded film (Resists chemical corrosion)	Standard PE/PET coating (Degrades above 120°C)
Maintenance Cycle	10+ years (Industrial-grade durability)	5-7 years (Limited thermal fatigue resistance)

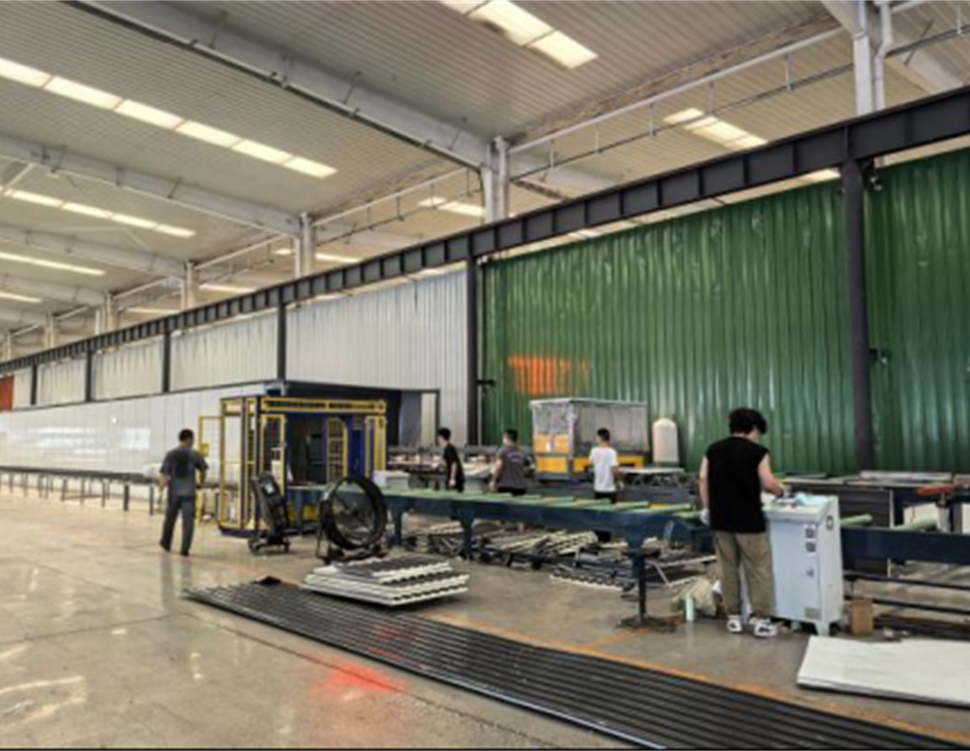

Company Profile

At Ecosteel Source, we combine manufacturing expertise and global trade experience to deliver sustainable, high-performance steel materials and advanced building solutions that shape the future of modern construction.

With a full range of products covering Zinc-Aluminum-Magnesium (ZAM) coated steel, galvalume (GL) steel, galvanized (GI) steel, pre-painted steel (PPGI/PPGL), as well as floor deck systems, C/Z/U structural purlins, metal studs&tracks (roof&wall), corrugated color steel sheets (roof&wall), sandwich panels and cleanroom panels, we deliver comprehensive solutions for modern roofing and wall cladding systems.

Combining advanced processing capability, strict quality control, and customized service, Ecosteel Source aims to help our partners to build durable, energy-efficient, and sustainable architectural projects worldwide.

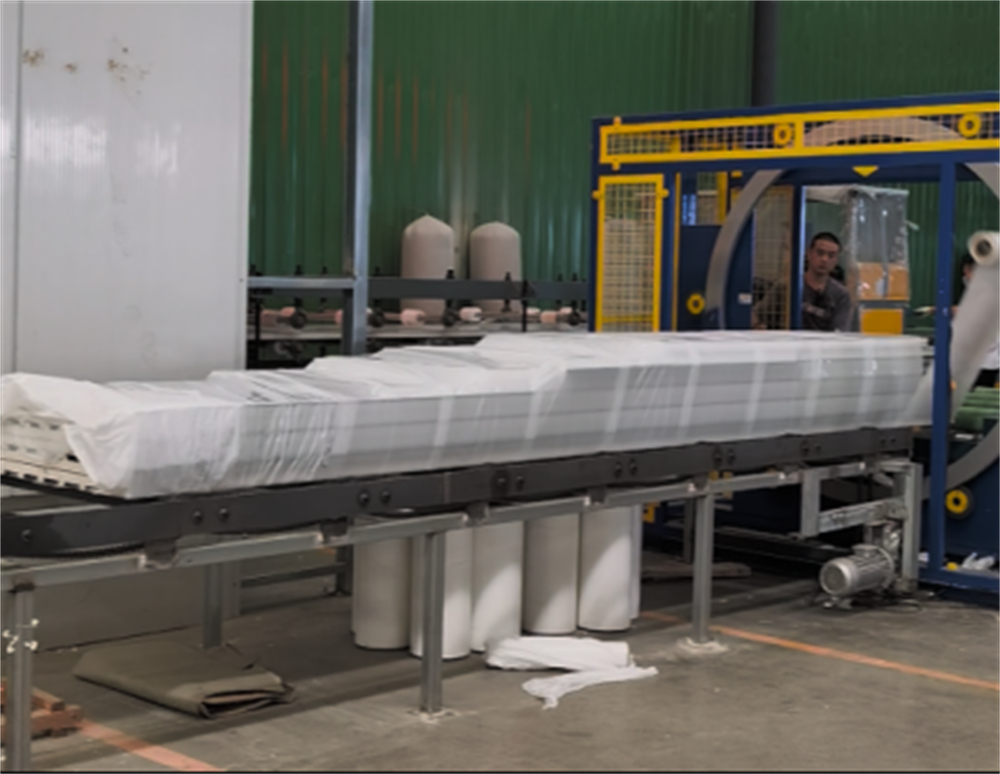

Pack & Ship
