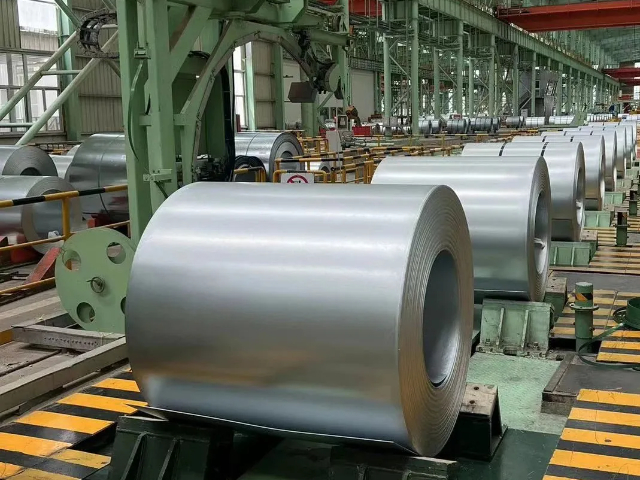

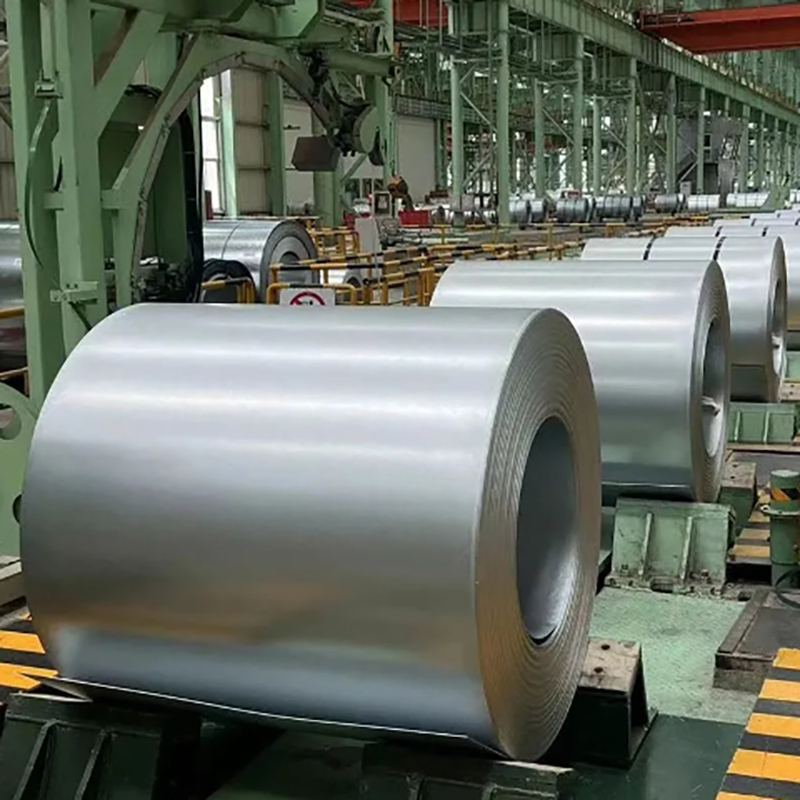

Zinc-Aluminum-Magnesium (zam) coated Steel Coil

Zinc-Aluminum-Magnesium (usually called zam coated) steel is a high-performance steel product coated with a zinc-aluminum-magnesium alloy. The typical coating composition contains approximately 85%–96% zinc (Zn), 5%–11% aluminum (Al), and 1%–3% magnesium (Mg), with proportions adjustable for specific applications. The addition of magnesium significantly enhances coating density and self-healing capability, providing approximately 2–10 times better corrosion resistance compared to conventional galvanized and galvalume coated products. Zam material steel coil offers outstanding protection in acidic, alkaline, and chloride-rich environments, which help in making it an ideal choice for high-salinity, high-humidity, and severe industrial conditions.

What Are The Differences Among These Materials

Item	Galvanized (GI)	Galvalume (GL)	Zinc-Aluminum-Magnesium (ZAM)
Coating Composition	Pure zinc (Zn)	Al-Zn-Si alloy (Approx. Al 55%, Zn 43.4%, Si 1.6%)	Zn-Al-Mg alloy (Zn 85–96%, Al 5–11%, Mg 1–3%)
Corrosion Resistance	Basic protection, suitable for general environments	2–6× better than GI	2–10× better than GI, with self-healing at cut edges
Weather Resistance	Fair, needs maintenance for long-term exposure	Good, withstands temperatures up to 315°C	Excellent, suitable for marine and chemical environments
Surface Appearance	Available in spangle/non-spangle	Silvery metallic luster with snowflake spangle	Uniform fine silver-white or light gray
Reflectivity	Moderate	High reflectivity, reduces heat absorption	Medium to high reflectivity
Formability	Good for stamping and bending	Good	Excellent ductility and adhesion
Cost	Lowest	Medium	Slightly higher
Typical Applications	Roofing, ventilation ducts, cladding panels, appliance base sheets	High-temp roofing, wall panels, appliance housings, exhaust systems	Coastal warehouses, solar mounts, guardrails, seaside plants

Product Description

Thickness: 0.3mm-6.0mm, depends on orders

Width: 150mm-1500mm, depends on orders

Grades: S250GD+ZM / S350GD+ZM / S550GD+ZM(Structural high-strength steel with a yield strength range of 250–550 MPa),etc (depends on orders).

We offer a range of processing services tailored to customer requirements. These include slitting large coils into smaller coils, cutting into narrow strips or flattening into sheets, and providing further fabrication into finished products such as C/Z/U purlins, light steel furring channel keels, and other customized items in our product catalogue.

Applications

Construction: Coastal warehouses, seaside steel structures, roofing and wall systems.

Agricultural Facilities: Greenhouses, livestock housing, and other high-humidity environments.

Transportation & Infrastructure: Highway guardrails, bridge components, traffic signs.

Energy & Industrial Equipment: Solar panel mounting systems, transmission towers, chemical equipment housings.

Quality Assurance: Ecosteel Source applies advanced continuous hot-dip coating technology to ensure precise composition, uniform thickness, and strong adhesion of the zam coating. Various coating weights (typically 275 g/m², specific coating weights could be produced depends on orders) and surface finishes are available upon orders. All products could meet JIS, ISO, and EN international standards, which ensuring long-term reliable performance even in extreme climates and harsh industrial conditions.

Key Features

Exceptional Corrosion Resistance

Magnesium promotes the formation of a protective film and self-healing layer at cut edges and scratches, preventing corrosion from spreading.

Outstanding Weatherability

Maintains structural integrity and appearance in marine, chemical, and tropical high-corrosion environments.

Excellent Formability

Provides good ductility and adhesion, suitable for complex forming, stamping, and bending processes.

Eco-Friendly

Can replace some post-galvanizing painting processes, reducing chemical coating use and environmental impact.

High Cost Efficiency

Extends service life while lowering maintenance and replacement costs.

Company Profile

At Ecosteel Source, we combine manufacturing expertise and global trade experience to deliver sustainable, high-performance steel materials and advanced building solutions that shape the future of modern construction.

With a full range of products covering Zinc-Aluminum-Magnesium (ZAM) coated steel, galvalume (GL) steel, galvanized (GI) steel, pre-painted steel (PPGI/PPGL), as well as floor deck systems, C/Z/U structural purlins, metal studs&tracks (roof&wall), corrugated color steel sheets (roof&wall), sandwich panels and cleanroom panels, we deliver comprehensive solutions for modern roofing and wall cladding systems.

Combining advanced processing capability, strict quality control, and customized service, Ecosteel Source aims to help our partners to build durable, energy-efficient, and sustainable architectural projects worldwide.

Pack & Ship

Shipping & Paymentterm

How to start your Project and Business?

Inquiry

Provide product specifications(materia size, coating, color, quantity, application).
Quotation

Get formal quotation with price, leao time, payment,and other details.
Sample

Confirm samples or drawings for customized colors patterns.
Contract & Payments

Sian Pl/contract and pay deposit to schedule production; Special customizec products require full payment in advance.

Production

Manufacturing with strict quality control,third-party inspection available.
Packing & Balance

Packed to international standards,and settle balance payment.
Shipment & Documents

Shipment arranged with documents,receive full set of shipping documents.
After-sales

Technical support,long-term supply and project services.
