YX30-245-980

Pre-painted Corrugated Steel Sheet

Color coated steel sheets(also called Metal Roofing Sheet when used for roof or Metal Wall Cladding Panel when used for wall) are lightweight architectural cladding materials that combine high-strength steel substrates with multi-layer weather-resistant coatings features. With widely used in industrial buildings, logistics warehouses, temporary facilities, and various sloped roof projects, these products offer outstanding advantages such as light weight, high strength, excellent corrosion resistance, vibrant color options, and ease of installation.

Specification

Profile/Type	YX30-245-980
Effective Width(after corrugation)（mm）	980
Material input width（mm）	1200

Product Advantages

Aesthetic Appeal

Available in a wide range of vibrant colors (RAL color could be customized) with a smooth, glossy surface, offering strong decorative value for modern architecture.

Easy Installation

Factory-formed panels so that the product enable quick, efficient on-site installation, which help in saving time and labor.

High Cost-Performance Ratio

Lower material and installation costs, which combined with reduced maintenance needs that make it budget-friendly choice for construction.

Curved & Tapered Capability

Products could be curved, tapered, and shaped for complex roof forms.

Long-Run Panels with Fewer Joints

Long panels reduce overlaps and potential leak points in usage.

Quick Lead Times & Stock Colors

With standard colors kept in stock, we can meet tight schedules with ease.

Quality Standard

Quality Standard	EN10142/10346/10169J153302,ASTMA755M
Thickness	0.1mm-0.8mm
Effective Width(after corrugation)	665mm,750mm,815mm,840mm,900mm,925mm,1020mm,1025mm,1050mm
Base metal	Galvanized,galvalume,or zinc-aluminum-magnesium (ZAM materials) etc
Type of paint	PE,PVDF,HDP,SMP etc
Length	Generally 1830mm,2440mm, 3000mm and 3600mmAny length could be customized according to orderand transportation limits which generally less than 12m
Delivery time	Within 15-20 working days after receiving deposit
Package	Export standard packing.Including waterproof paperand steelsheet bundle (with steel strips3-4 pcs)

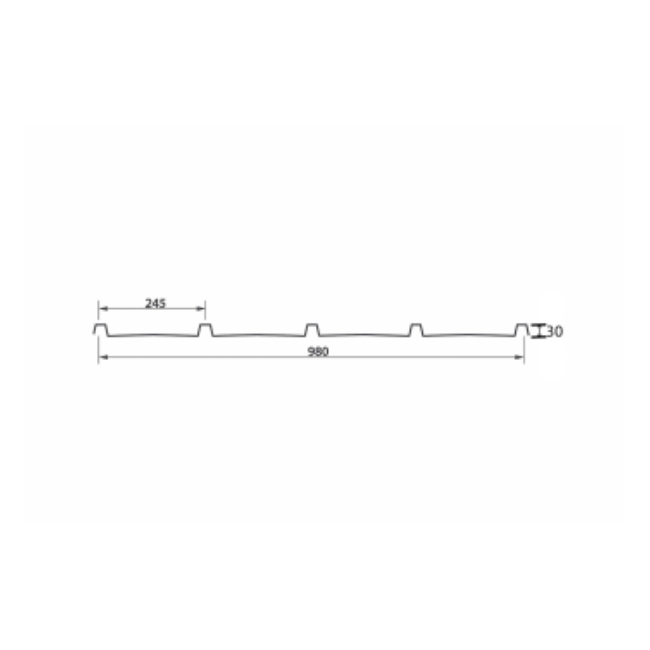

The YX30-245-980 Pre-painted Corrugated Steel Sheet represents a premium architectural cladding material that expertly combines engineering excellence with practical functionality. This high-performance product features a specifically engineered profile where the numbers denote a 30mm rib height, 245mm pitch spacing, and 980mm effective coverage width. This intelligent design ensures optimal structural performance while maximizing installation efficiency, making it an ideal choice for various construction applications.

Manufactured using premium steel substrates including galvanized steel (GI), Galvalume (Aluzinc), or advanced Zinc-Aluminum-Magnesium (ZAM) alloys, the sheet provides exceptional corrosion resistance and long-term durability. These high-quality metallic substrates are enhanced with multi-layer coatings of durable Polyester (PE) or Polyvinylidene Fluoride (PVDF), which offer superior protection against UV radiation, chemical exposure, and harsh weather conditions. The product's substantial 980mm coverage width significantly reduces installation time and material requirements, while the balanced profile depth enables efficient load distribution and structural stability.

The YX30-245-980 demonstrates remarkable versatility across numerous applications, serving as an excellent solution for industrial buildings, logistics warehouses, commercial facilities, and various sloped roof projects. Its combination of lightweight properties and high strength reduces the load on supporting structures while maintaining excellent load-bearing capacity. The product is available in all standard RAL colors with customizable thickness options, ensuring adaptability to specific project requirements.
